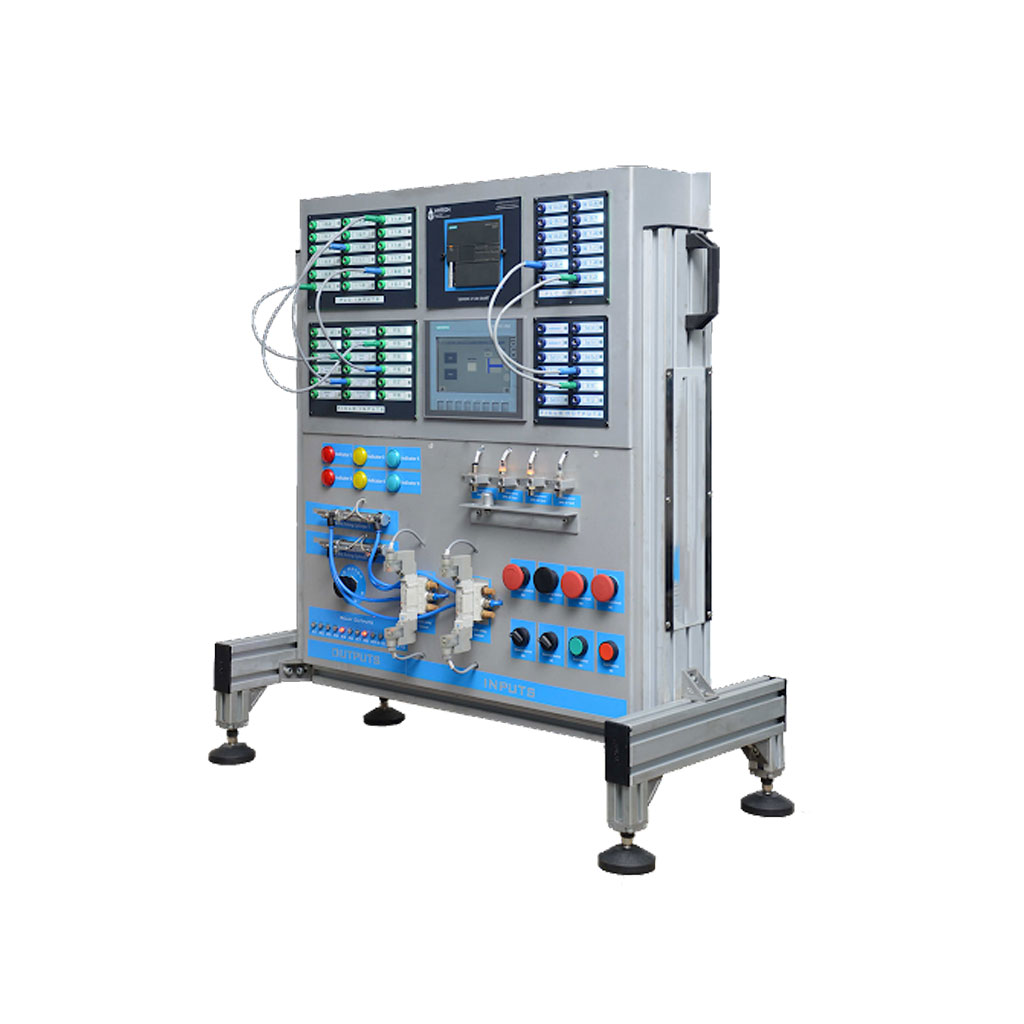

Electronic panel with ergodically colorful designed, totally safety oriented and slick looking replaceable experimental panel.2. Can learn about different applications of Industrial PLC, uses of Industrial Devices, Sensors & industrial automation process also advanced machines simulation to provide input switches, sensors, outputs & LED.
3. Connection through sturdy 4mm Banana sockets & Patch cords.
4. Video tutorial for every single experiment also Student's & Instructor's workbook provided.
5. Proper live training to guide instructors to learn about this training kit.
6. Mechanical Dimensions: 1510 (W) x 820(H) mm
7. Power Supply: 1x Built in SMPS Supply: 24V / 2 A
8. PLC used: 1x Siemens S7 200 SMART
9. IO Specifications: 24DI + 16DO
10. Programming Software:
Required software should be supplied
''11. Operating voltage:
110/220/230V ac, 50/60 Hz.''
12. SEP FOR POWER UNIR: 1x MCCB with single phrase leakage protection.
13. SEP FOR DIGITAL Input: No. of 4mm banana sockets =22. Consisting of 22 Nos. of Digital Inputs. (8 toggle switches + 8 push to ON switches + 2 Proximity sensor + 2 photo electric sensor)
14. SEP FOR DIGITAL Output: No. of 4mm banana sockets =45, for Magnetic contactor Contacts = 04 Nos. relay contacts =24 Nos. 16 Nos. of Output LED Indicators, 5 Nos. of Relay Panel with coil rating 24V and contact rating of 220V AC / 5 Amp, Magnetic Contactor coil rating AC 220V 40A.
15. SEP FOR MEASURING MEASUREMENT: 1x DC Voltmeter, 1x DC Ammeter.
16. SEP FOR POWER SOURCE: No. of 4mm banana sockets =10. +24V DC, consisting of 5 Nos. of +24V & 5 Nos. of GND, 8 Pin Combined Socket for 220V AC.
17. Following Replaceable Static Application Panels should be supplied:
18. PLC Basic Instruction Training
19. Relay Control Experiment
20. Magnetic contactor Experiment
21. Motor Forward and Reverse Controlling
22. Automatic motor control system
23. PLC & PC On-Line communication.
24. Automatic goods delivery and loading system control Simulation
25. Automatic vending machine control system simulation.
26. Switching of Lights simulation.
27. 7 Segment Display simulation.
28. Sequential Control of Motors simulation.
29. Star Delta Control simulation.
30. Tank Level Control simulation.
31. Traffic Light Control simulation.
-
Automatic Drink Dispensers simulation.
33. Automatic Car Parking Garage simulation.
34. Combination Lock simulation.
35. Elevator control system Simulator
36. Automatic vending machine simulation.
37. Washing Machine simulation.
